Rubber Manufacturing and Fabrication
![](https://www.princerp.com/wp-content/uploads/2020/12/replacement-gaskets-1-e1606848180577-442x1024.png)
![](https://www.princerp.com/wp-content/uploads/2021/01/20201005_095621-1-498x1024.jpg)
Gasket Fabrication
Prince’s Unique Panacea® Compounds for the Chemical Industry:
- 69-Series Special EPDM
- 5170 Special Pure Gum
- R3400, PP340 Vinyls
- Fluoropolymer-Protected Elastomer
- PT70-M Special PTFE-Protected EPDM
- PT-G White Reinforced PTFE
- 1475 TFE-P Fluoroelastomer
Commercial Materials:
Natural Rubber, Silicone, *Viton®, Butyl, Nitrile, Neoprene, EPDM, SBR, Expanded PTFE, etc.
*Trademark: Chemours Co.
Prince’s Unique Panacea® Compounds for the Chemical Industry:
- Extruded

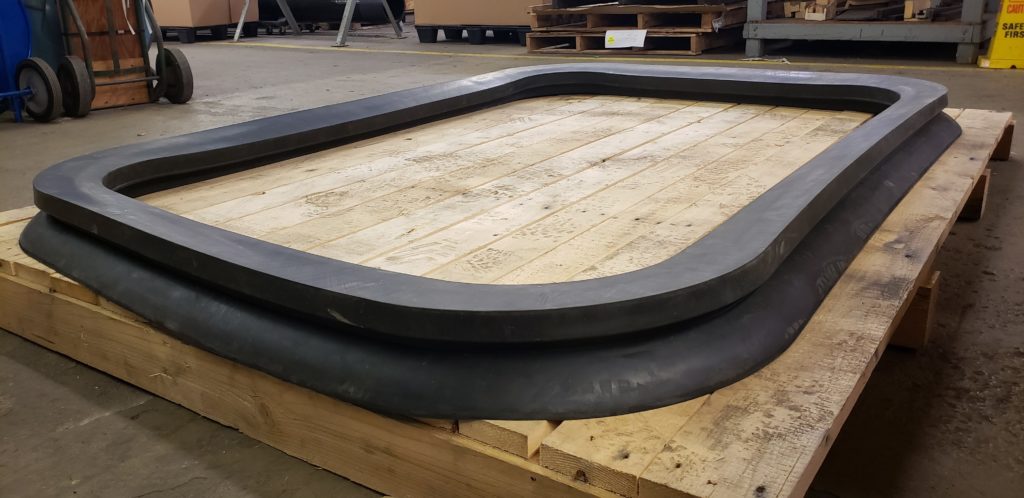

- Large Custom-Molded Gaskets:
- Up to 149.6” L (3800 mm) x 71 ¼” W (1800 mm)
- Heat-Spliced
- Machined
- Armored Fluoroplastic
- Segmented
- Dovetailed Gaskets Prince has fabricated up to 10’-diameter, with capability to go even larger.
- Molded and Vulcanized
![](https://www.princerp.com/wp-content/uploads/2021/03/20210226_134310-1024x498.jpg)
![](https://www.princerp.com/wp-content/uploads/2021/02/20210216_113448-1024x498.jpg)
![](https://www.princerp.com/wp-content/uploads/2020/07/Prince-Panacea-Mark-III-Grid-Protector-Bottom-Seal-Corner-Vulcanized-Joi...-300x209.jpg)
![](https://www.princerp.com/wp-content/uploads/2020/07/20170912_125607-scaled-e1595957992550-300x300.jpg)
![6962 Special EPDM Vulcanized Molded Corner Joint with Bolt Holes 6962 Special EPDM Vulcanized Molded Corner Joint with Bolt Holes](https://www.princerp.com/wp-content/uploads/elementor/thumbs/6962-Special-EPDM-Vulcanized-Molded-Corner-Joint-with-Bolt-Holes-ot56tyi7a0iinhdgrf2ani7u7eg076p8333hfq45s4.jpg)
![](https://www.princerp.com/wp-content/uploads/2021/03/20210114_085745-scaled-e1615913520172-1024x911.jpg)
![](https://www.princerp.com/wp-content/uploads/2021/03/Prince-Panacea-6962-Special-EPDM-Die-Cut-Full-Face-Gasket_20200911-scaled-e1606840120493-1024x651.jpg)
![](https://www.princerp.com/wp-content/uploads/2021/03/6962-Hose-Flange-Gaskets_Die-Cut-1024x959.jpg)
![](https://www.princerp.com/wp-content/uploads/2020/12/20201201_145524-scaled-e1611597044788-1024x498.jpg)
Molded, Extruded, and Fabricated Rubber Parts
Molded and Fabricated:
Grommets, Bumpers, Plugs, Stoppers, etc., within a complete spectrum of elastomers. We mold in a size range: <1/8” up to large molded parts. Parts are produced to standard commercial or custom tolerances.
Extruded:
Cords of “U” Channels, Square, Rectangle, Bulb, etc. are produced daily, in a variety of materials, hardnesses, and applications.
Materials:
Commercial and Specialty Elastomers, and Dual-Molding
Secondary Fabrication:
Drilling, Splicing, Punching, Grinding, Adhesive-Backed
Die-Cut Gaskets:
Custom Die-Cutting of Various Thicknesses of Rubber Sheet

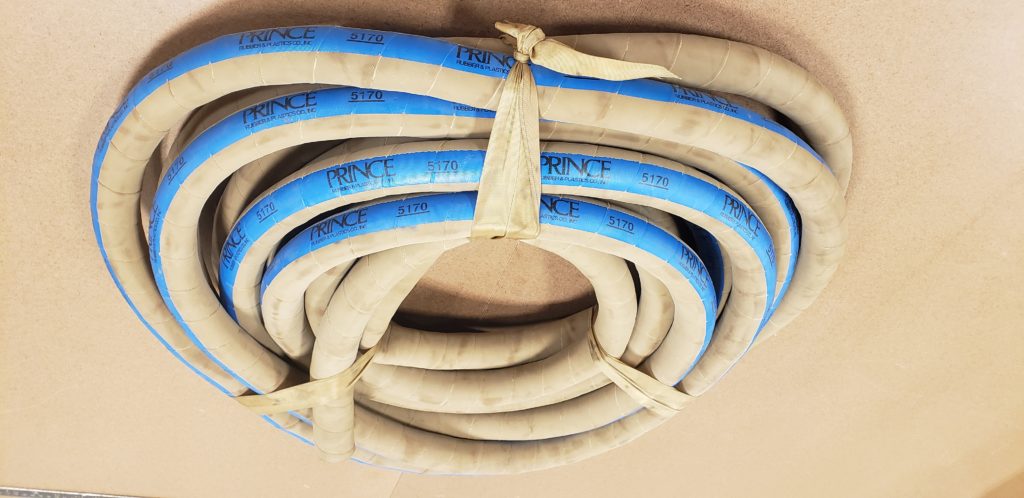

Rubber Tubing and Hose
High-Performance and Standard Rubber Tubing, Custom-Extruded or Mandrel-Wrapped Flexible Rubber Tubing.
Fabrication Capabilities:
Assembly, Cut-to-Length, Slitting, Coiling, Socket and Flared/Belled Ends, Heat Splicing, Special Braiding. Tube Fittings, Hose Crimping, labeling, and pressure testing available.
Materials:
Pure Gum, Neoprene, Nitrile, EPDM, SBR, Silicone, Viton®, Prince Panacea® Specialty Compounds.
